9 hours ago, GraemeI said:

I have enough problems trying to work out where the chase is!!!!  Never mind the catch part!!! :lol:

Thats because you're at the front, try being near the back and the chase is obvious :D

Share this post


Link to post
Share on other sites
7 hours ago, Mike said:

Thats because you're at the front, try being near the back and the chase is obvious :D

What the hell is @KevinA excuse then?  He is so far ahead I can't even see him :P

Share this post


Link to post
Share on other sites
2 hours ago, KevinA said:

Some might say I am cheating with sticky tyres, but TBH it 's the way I really enjoy the 86. Might put some rubbish on for a drifting day though :)

No cheating - it's the next logical step in competition, assuming you don't have to maintain it as your daily driver..... :)

Share this post


Link to post
Share on other sites

Btw - if anyone is thinking of buying one. Demon Tweeks outlet on ebay currently selling driver harness for GBP 63.55 with free delivery. Bargain

Sent from my SM-G930F using Tapatalk

Share this post


Link to post
Share on other sites
19 minutes ago, VAD17 said:

Btw - if anyone is thinking of buying one. Demon Tweeks outlet on ebay currently selling driver harness for GBP 63.55 with free delivery. Bargainemoji16.png

Sent from my SM-G930F using Tapatalk


Isn't that one different though as it has a different part number to the one mentioned in this thread?

Share this post


Link to post
Share on other sites
Isn't that one different though as it has a different part number to the one mentioned in this thread?
Oh yes, you are right, it's the passenger side. My bad

Sent from my SM-G930F using Tapatalk

Share this post


Link to post
Share on other sites
Oh yes, you are right, it's the passenger side. My bad

Sent from my SM-G930F using Tapatalk

It's a right hand side one but I'm pretty sure it's a completely different model looking at the pictures, etc

Sent from my ONEPLUS A3003 using Tapatalk

Share this post


Link to post
Share on other sites
It's a right hand side one but I'm pretty sure it's a completely different model looking at the pictures, etc

Sent from my ONEPLUS A3003 using Tapatalk

You are right, I am just blind . We need 3 ASM, not 4. Sorry

Sent from my SM-G930F using Tapatalk

Share this post


Link to post
Share on other sites

Did anyone torque the bolts up to specific values or just go with nice and tight? Part of me thinks they should be as it's a safety thing but I can't find them in the stupidly long repair manual :D

Share this post


Link to post
Share on other sites

Found a better manual, and if I'm reading it right, 42nm for the nut that holds the buckle on, 30nm for the other 2, which seems odd if the rear seat belt one is difficult to get off!

Share this post


Link to post
Share on other sites

Quick question for the group: what is it supposed to attach to on the drivers seat itself?

I presumed the seatbelt buckle, but that just appears to be a nut (and not a lot of spare thread), and almost no access to the bolt itself.

Share this post


Link to post
Share on other sites
40 minutes ago, GravelRash said:

Quick question for the group: what is it supposed to attach to on the drivers seat itself?

I presumed the seatbelt buckle, but that just appears to be a nut (and not a lot of spare thread), and almost no access to the bolt itself.

It bolts onto the lap belt mounts. There isn't a lot of room but I managed to bolt mine in without removing the drivers seat easily enough. You get longer bolts with the belts.

Share this post


Link to post
Share on other sites
15 hours ago, Lauren said:

It bolts onto the lap belt mounts. There isn't a lot of room but I managed to bolt mine in without removing the drivers seat easily enough. You get longer bolts with the belts.

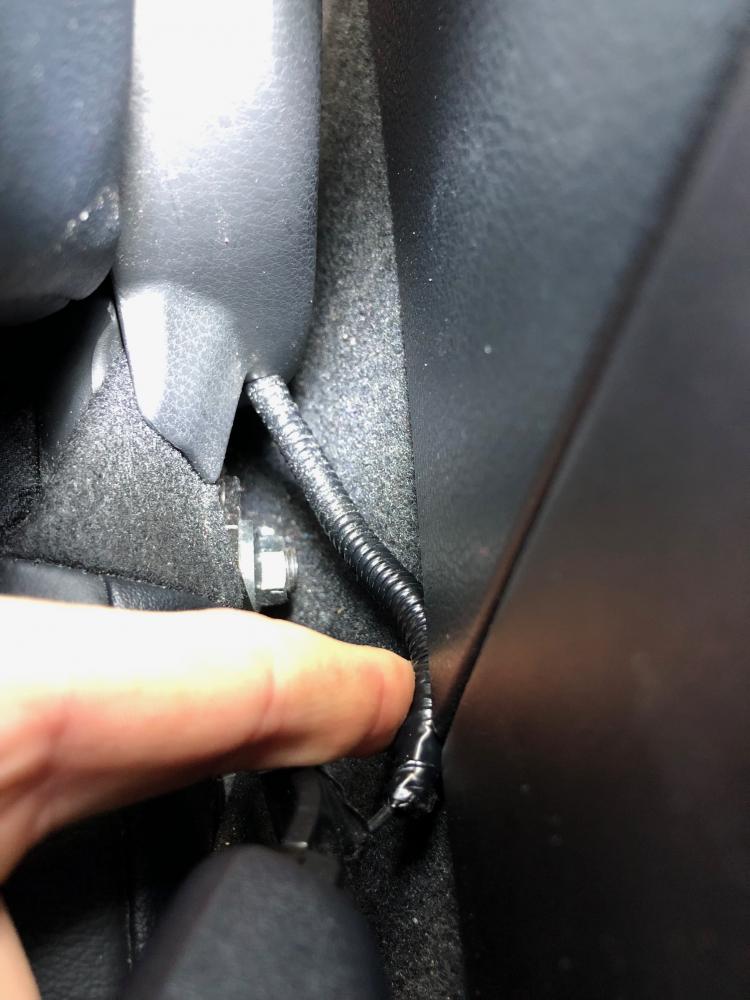

I'm not sure we're talking about the same bolt. It's not a bolt on my seat-buckle. It's a stud with a nut on the end.

I've tried to see if I have access under the seat itself to the back of the stud, but I don't see or feel any access, so I've left pondering if I'm supposed to just undo the nut, mount the harness ringlet and then do the nut back up, but as you can see from the photo there's very little spare thread.

It's also ridiculously tight and there's no room for a breaker down the side of the transmission tunnel.


Share this post


Link to post
Share on other sites
24 minutes ago, Mike said:

That's the right place afaik, not fitted mine yet but that's where I plan on fitting it to. The only longer bolt you get is for the rear seat belt mount I think.

My kit arrived with 3 bolts (1 was slightly longer), 3 washers and 3 spacers of various sizes. I think it's a generic fitting kit. I used the slightly longer bolt to replace the bolt that's in door jam for the drivers seatbelt was the stock bolt had a slight taper and didn't fit snugly into the harness ringlet. For the rear mounting point I re-used the stock bolt (and a hammer and punch to bend it into shape).

I also lowered the rear-seat belt reel by un-doing the lower bolt as well. This allowed me to build the bolt assembly back up and then mount it easily. Otherwise there's not much wiggle room to re-attach 2 spacers and a metal ring washer without it all falling down in to the car.

I also expected it to take about 30 minutes and I spent nearly 2 hours trying not the break any trim and swearing at the rear airbag trim that somehow is always in the way!

Share this post


Link to post
Share on other sites
57 minutes ago, Lauren said:

Ah yes, it's a nut, rather than a bolt. From what I remember we just undid the nut and put the harness eyehole in there. There was enough thread. It's just a bit fiddly.

It's installed. Brute force and my usual ignorance got the nut undone and then it was fairly straight-forward.

Share this post


Link to post
Share on other sites

Finally getting round to installing my harness and not overly comfortable with bending the metal connecting the rear strap to the pillar.

Is there a reason not to bolt it in between the actual seat belt reel and the bracket (using bolt in image below)? Seems a better place as its directly out towards the front seat then rather than coming down and being held in a bit by some plastic??


Share this post


Link to post
Share on other sites

I think you would want to bolt it to the body of the car, not just to the bracket.
Instruction says you can bend it, but you wouldn't want to do it multiple times.

Sent from my SM-G973F using Tapatalk
